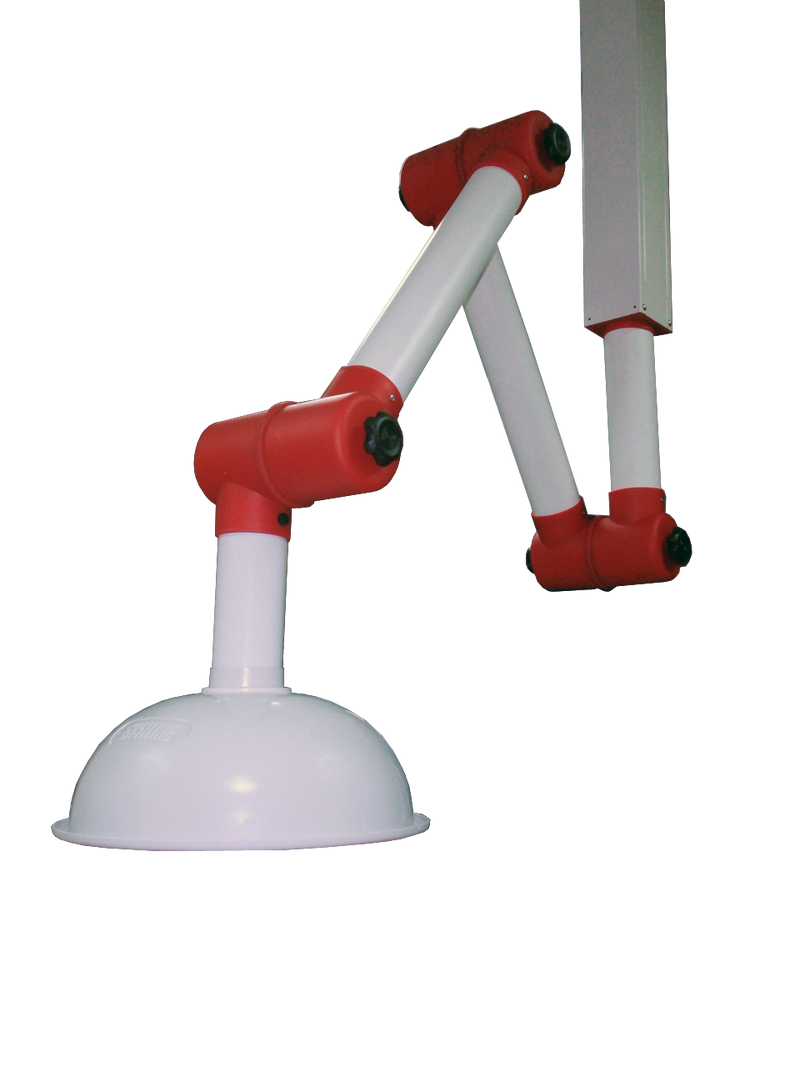

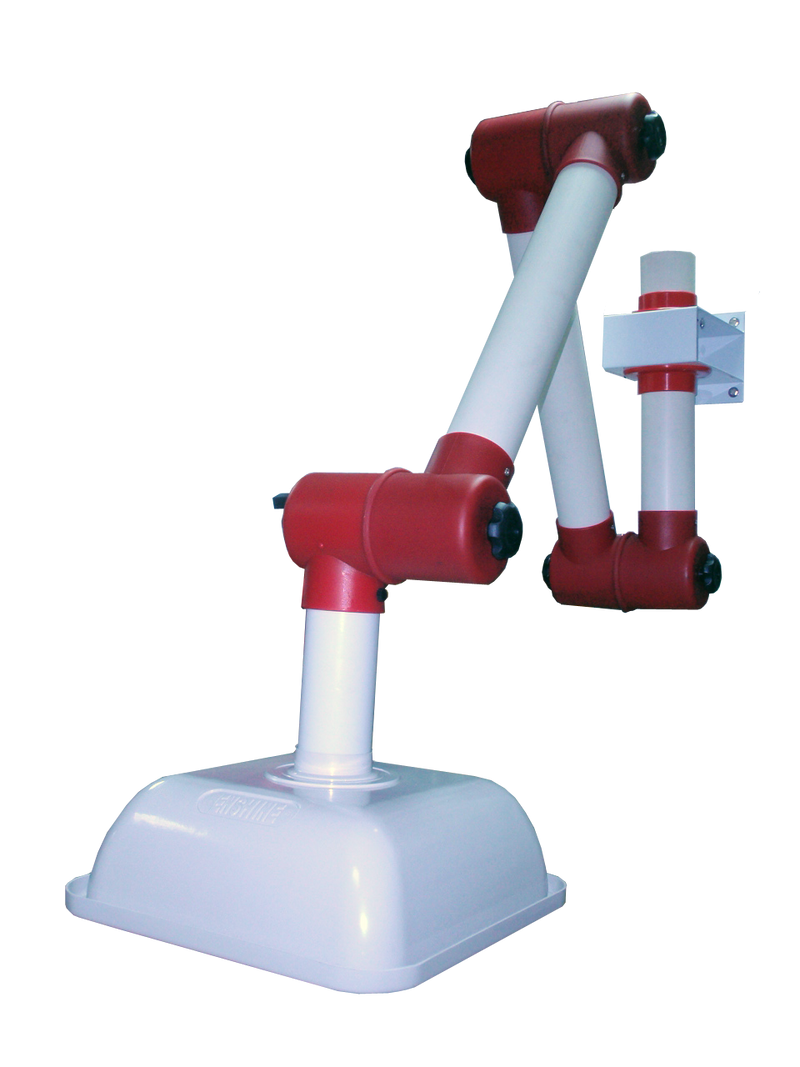

Wall Mounting 3 inch EAR-3W

Wall Mounting 3 inch
EAR-3W

Specification

Pipe Diameter: 75mm
Pipe material：PVC
Reducer material：PP
Square / Round Hood：
390Wx390Dx130/160Hmm
390mm dia.
Wall Bracket with reducer：
216Lx135Wx134Hmm

A:
Wall Mounting(3 Inch)
Model：EAR-3WA
A：3-joint-extraction arm
● Pipe Diameter: 75mm
● Pipe material：PVC
● Reducer material：PP
● Feature :
There are three valves upon 3-joint-extraction arm, each one can
easily adjusted the arm to the suitable position where harmful
substances are present in dangerous concentrations.
Operation and maintenance of the arm is easy. It can be adjusted
to a new position and dismantled for cleaning without the need
of tools. Top of the pipe can be revolvable freely.

B：Hood
● Dimension：390mm dia.
● Hood material：Polypropylene(PP)
● Reducer material：PP
● Features：Easy to clean and chemically resistant well.

C：Wall bracket with reducer
● Dimension：216Lx135Wx134Hmm
● Material：Iron plate with white powder coated
