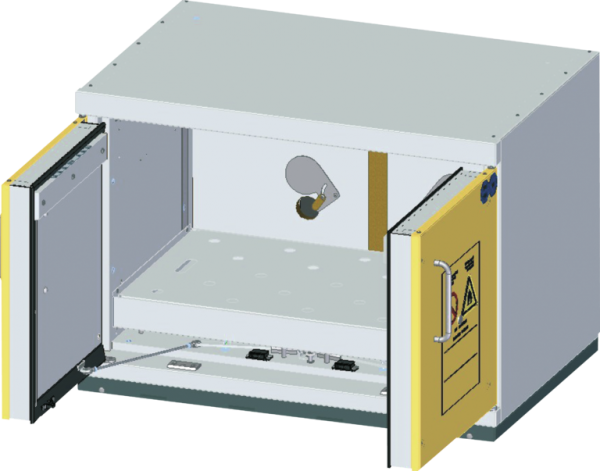

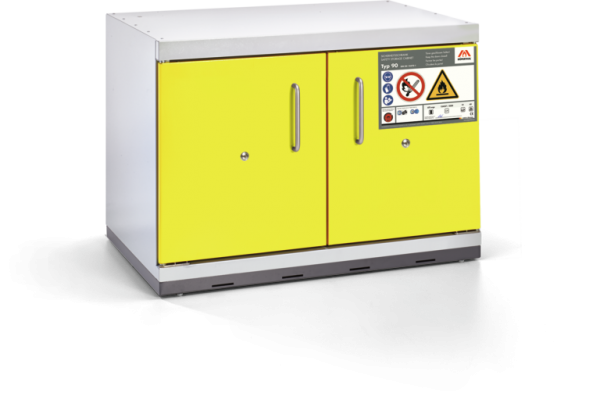

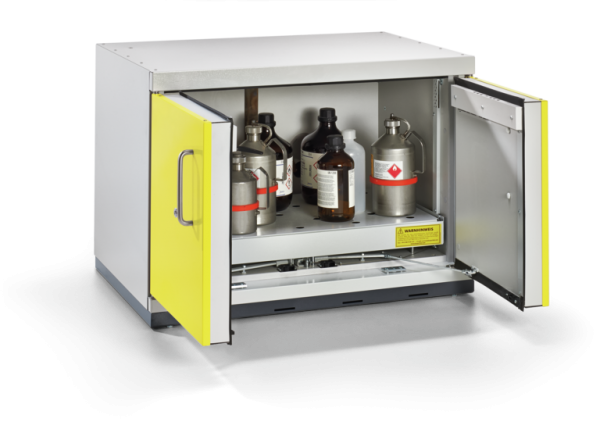

Under Bench Type 90 Flammable Liquid Storage Cabinet M

Field of Application: Passive storage
Width: 889 mm
Depth: 594 mm
Height: 631 mm
Weight: 141 kg

Classical door technology (door handle). For the storage of flammable liquids. Type testing by MPA/TÜV SÜD according to DIN EN 14470-1, DIN EN 16121 and DIN EN 16122, EK5/AK4 09-10:2009 and AfPS GS 2019: 01 PAK Mark of approval: GS/CE mark, high quality mark of approval by TÜV SÜD Construction and colour:

    Product Features

    • Outer carcass sheet steel, RAL 7035
    • Doors sheet steel, RAL 1018
    • Inner carcass of decor panels, RAL 7035 Fittings and features:
    • Doors close automatically in case of fire
    • Doors remain open in any position
    • Cylinder lock for safe access
    • Bottom tray sheet steel, RAL 7035
    • Perforated sheet insert, RAL 7035
    • Exhaust air connection socket at the rear of the cabinet
    • Visual inspection of the ventilation opening
    • Earthing connection at the rear of the cabinet
    • Interior fittings conductively connected with carcass
    • Classical slotted base, RAL 7015

    Technical Details

    Category: Type 90 - flammable liquids
    Model size standard M
    Outer width [mm]: 889
    Outer depth [mm]: 594
    Outer height [mm]: 631
    Net weight [kg]: 141,00
    Number of storage levels 1
    Number of storage areas per storage level 1
    Door operation classical technology
    Door technology wing door technology
