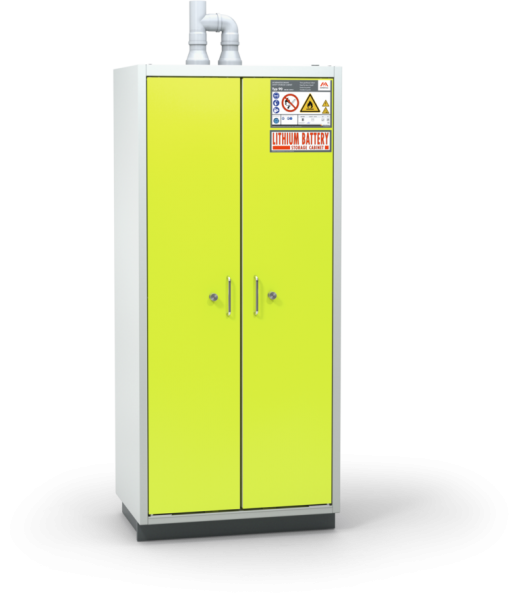

BATTERY LINE Type 90 Lithium-Ion Battery Storage Cabinet Two Doors L

Field of Application: Storage of batteries
Width: 894 mm
Depth: 612 mm
Height: 2045 mm
Weight: 400 kg

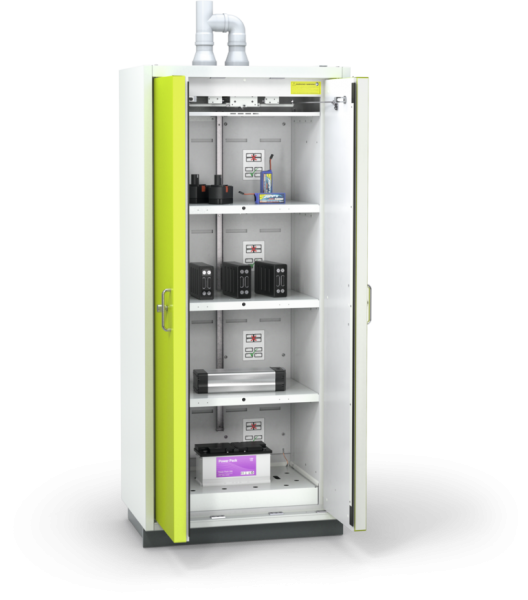

Classical door technology (door handle) For the storage and charging of lithium-ion batteries Type-tested by MPA/ TÜV SÜD according to DIN EN 14470-1, DIN EN 16121, DIN EN 16122, DIN 31000, and IEC 61439 Loss prevention in terms of VdS 3103 Mark of approval: Safety tested and CE mark

Product Features

  • Outer carcass sheet steel, RAL 7035
  • Doors sheet steel, PANTONE 389 C
  • Inner carcass decor panels, RAL 7035
  • load adapter (tested), RAL 7035
  • Fittings and features:
  • Doors remain open in any position
  • Doors close automatically in case of fire
  • Cylinder locks for access security
  • Backdraftlock after inside fire
  • bottom tray sheet steel, RAL 7035

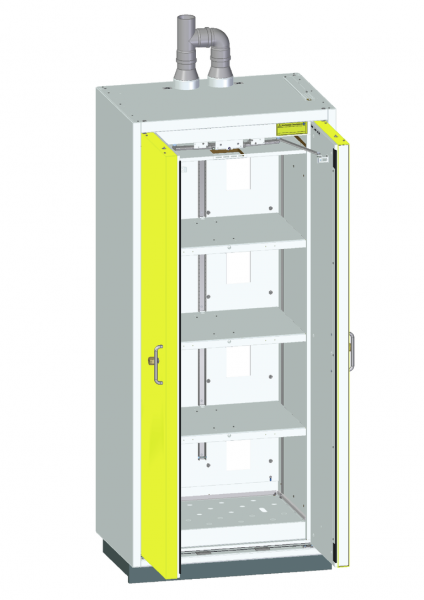

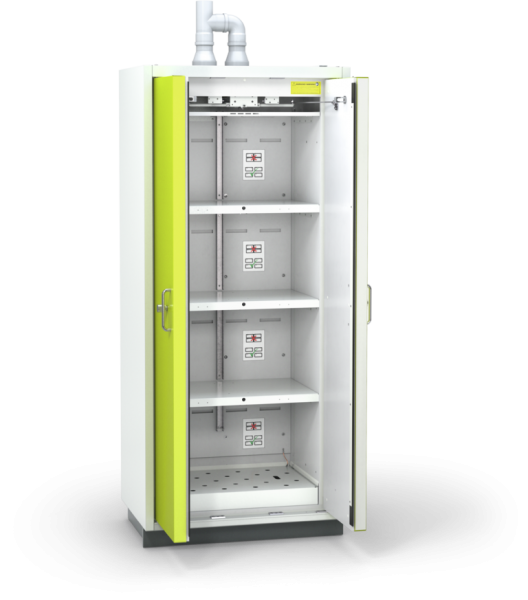

  • 4 storage levels sheet steel, RAL 7035
  • 2 storage area per storage level
  • 4 sockets per storage area
  • exhaust air connection on the cabinet roof
  • visual inspection of the ventilation opening
  • Smart Box for Backdraft monitoring
  • earthing connection on the cabinet roof
  • interior fittings grounded to carcass
  • adjustable feet for level adjustment
  • set-back base, RAL 7015
  • plug ready connection to a power supply
  • connectiontype: CEE L+N+PE 6h
Technical Details
Category: Type 90 - lithium ion batteries
Model size L Model type STANDARD (storage shelves)
Outer width [mm]: 894
Outer depth [mm]: 612
Outer height [mm]: 2.045 Net weight [kg]: 400,00
Supply voltage no charging system
Equipment package without signal transmission
Number of storage levels 4
Number of storage areas per storage level 1
Door operation classical technology
Door technology wing door technology
